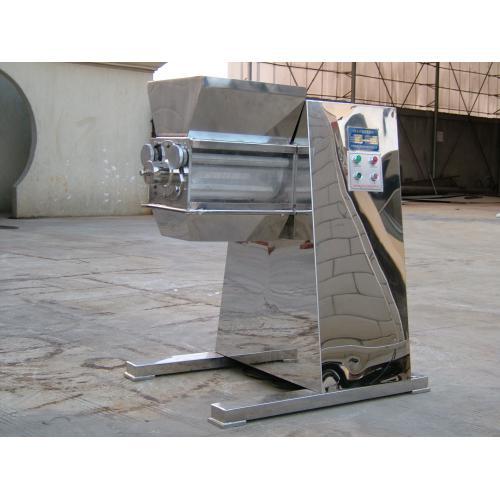

【Product Name】：Oscillating granulator
First, the use of
1, the machine is reversing the role of a rotary drum, through the screen, you can wet the powder particles of research into the use of raw materials, but also can be widely used for crushing has pressed for ready-made pieces and particles purposes .
2, used for mixing the powder in the chemical aspects of research into granules, after drying compressed tablets, they can crush during storage and bonding or chemical processing in the form of powder sub-blocks into blocks.
3, it is not suitable for semi-solid, liquid, paste or ground use.
Second, the basic characteristics
A machine strong and powerful, simple operation, smooth running, there is a large volume bucket. Full contact with the rotating drum and the material of stainless steel, to ensure quality cleaning materials and not discolored.
2, mechanical drive all closed in the machine easy to clean, along with automatic lubrication systems, improve life, easy to operate.
3, the number of mesh sieve number of words, should be based on the particle size requirements, owned by the user. It is a device with two steel clip firmly, easy assembly and disassembly, tighten loose shore by fine ratchet can be appropriately adjusted.
Third, the technical specifications
Drum Diameter (mm) ................................................ ..160
Roller effective length (mm) .......................................... ... 360
Powder hopper aperture length (mm) .......................................... 430ⅹ410
Reversing drum number (rev / min) .......................................... .60 ~ 100
Dry goods yield (kg / h) ............................................. .700
Wet product yield [12 mesh] (kg / h) ................................. .300
Equipped with power:
Motor Power (kW) ................................................ 2.2
Speed (rev / min) ............................................. .1420
Power (He) ................................................ .. 50
Voltage (V) ................................................ ..380
Type ................................................... Y110L1-4
Machine weight (kg) ................................................ 420
Overall height (mm) ................................................ .1240
Overall length (mm) ............................................. ..960ⅹ750
