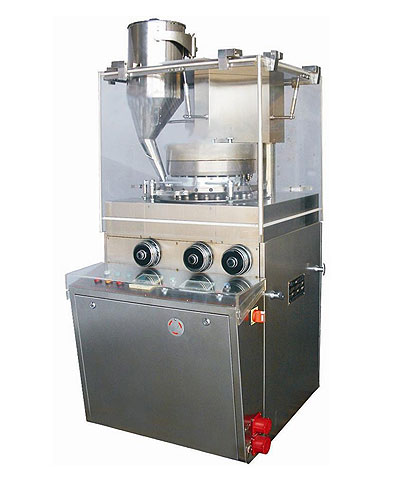

【Product Name】：ZPY124 Rotary type tablet press

Purpose: ZPY124 series rotary tablet press is a series of products can be widely used in pharmaceutical, food and other industries to suppress a variety of round and shaped tablets, change series tablet press meet the pharmaceutical production and quality management of GMP standards, compression chamber and the transmission mechanism is completely separate, tabletting room without any paint, and drug contact parts are stainless steel or with special surface treatment, non-toxic and resistant to corrosion. ZPY124 series tablet press is no centralized lubrication consecutive series, so that the transmission system, rail and main part adequately lubricated friction, noise and wear reduction, so that greatly reduce maintenance costs to meet the requirements for filling powder and other raw materials. Tablet, film thickness, filling, speed adjustable hand wheels, all kinds of lights, signs, buttons are located in the same direction, observation, easy to operate.

ZPY124 series rotary tablet press using a combination of design, compact structure, more than 90% of the parts with other models in the series universal, easy to manage and change the spare parts, molds IPT standard.

Model	ZPY136	ZPY129	ZPY124
Die number	36	29	24
Maximum tablet pressure	80KN	80	80
Maximum tablet diameter	13mm	18	22
The maximum depth of fill	18mm	18	18
The maximum production capacity	97000pcs/h	78000	64000
Main motor power	4kw
Machine height	With Hopper 1800 Without hopper 1580
Area	930*950
Weight	1400
