【产品名称】：RXH热风循环烘箱

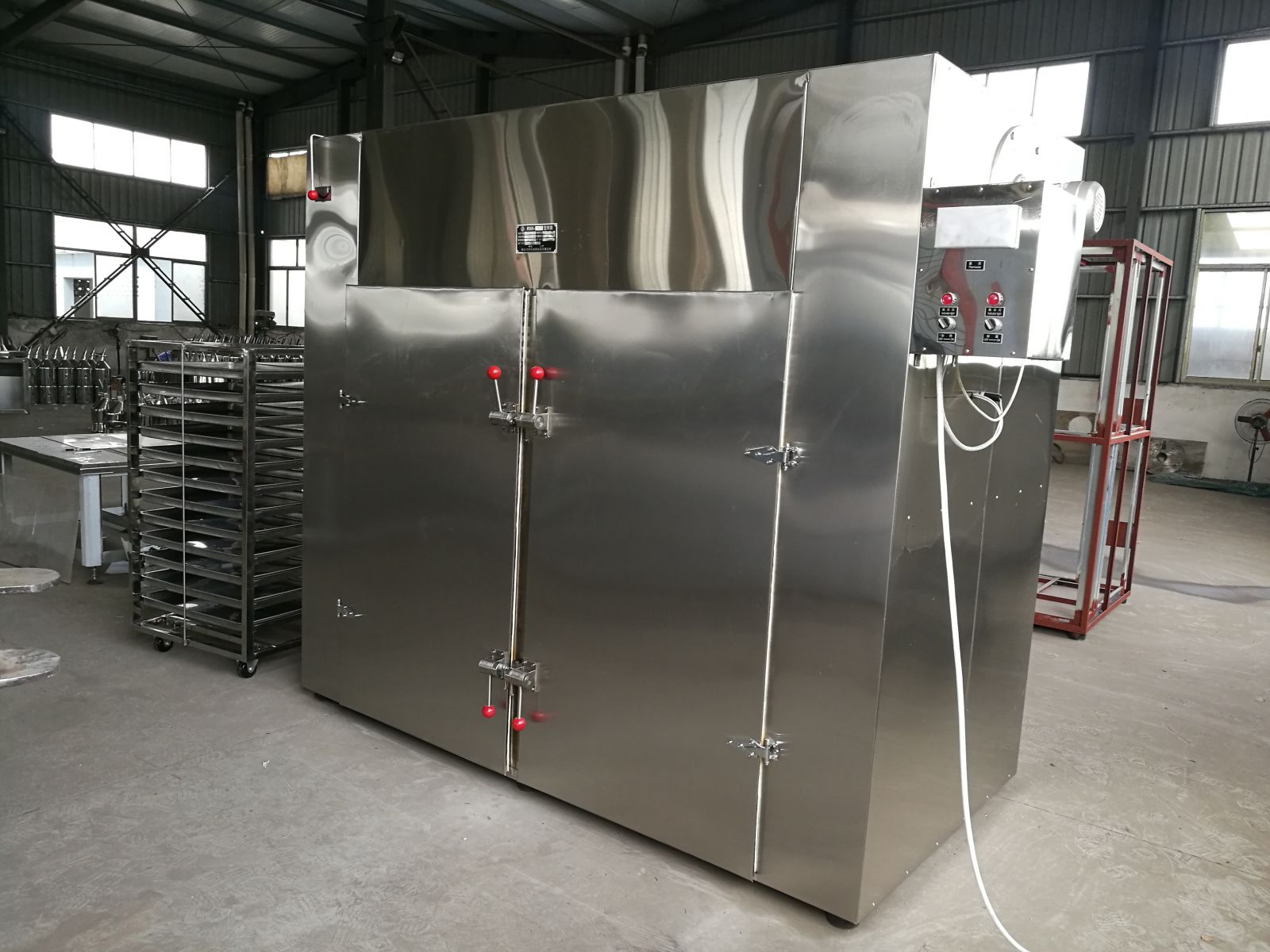

RXH热风循环烘箱
本机广泛用于制药、食品、化工等行业对物料进行加温烘干或除湿。
该机工作原理是利用蒸汽或电加热器加热空气，然后由加热的空气对物料进行循环烘干。箱内各处的温差小，干燥均匀。在干燥工程中不断地补充新鲜空气和排出湿热空气，所以箱内保持适当的温度，使干燥过程始终处于ZUI佳状态。
MAIN PUROSE
The machine is widely used in pharmaceutical, food, chemical and other industries to heat the material drying or dehumidification.
The working principle of the machine is to use steam or electric heater to heat the air, and then the material is recycled by heating air. The temperature difference is small in the box. In the drying process, the fresh air is continuously added and the hot and humid air is discharged, so the proper temperature is maintained in the box, so that the drying process is always in the best condition.
主要特点
♦大多数热风炉内盘旋。热效率高。节约能源。
♦以加强通风，配有可调空气分配器板炉内。原材料可干噪均匀。热的来源可以是蒸汽，热水，电远红外。
♦噪音低，运行稳定。温度自动控制。安装和维护都很方便。
♦应用领域广泛，可适用于各种原材料。这是一个全面的干燥机。
MAIN FEATURE
♦Most of the hot air stove circled. High thermal efficiency. Energy conservation。
♦To strengthen the ventilation, equipped with adjustable air distributor plate furnace. The raw material can be dry and even noise. The source of heat can be steam, hot water, and far infrared.
♦Low noise, stable operation. Automatic temperature control. Installation and maintenance are very convenient.
♦The utility model has wide application field and can be applied to various raw materials. This is a comprehensive dryer.
技术参数 TECHNICAL PARAMETERS
|
型号Model |
RXH-5-C |
RXH-14-C |
RXH-27-C |
RXH-41-C |
RXH-51-C |
|
老型号规格Old model specification |
CT-C-0 |
CT-C-Ⅰ |
CT-C-Ⅱ |
CT-C-Ⅲ |
CT-C-Ⅳ |
|
每次干燥量Drying volume each time |
60 |
120 |
240 |
360 |
480 |
|
电加热功率Electric heating power |
9 |
15 |
30 |
45 |
60 |
|
风机功率Fan power（kw） |
0.45 |
0.45 |
0.9 |
1.35 |
1.8 |
|
风量Fan volume（m³/h） |
4510 |
4510 |
9020 |
13530 |
18040 |
|
耗用蒸汽Steam consumption（kg/h） |
15 |
20 |
40 |
60 |
80 |
|
箱内温差（℃）Temperature difference inside the oven |
±2 |
±2 |
±2 |
±2 |
±2 |
|
托盘数量Pallet quantity |
24 |
48 |
96 |
144 |
192 |
|
整机尺寸Machine size（mm）L×W×H |
1380×1200×2000 |
2260×1200×2000 |
2260×2200×2000 |
2260×3200×2000 |
4280×2200×2270 |
