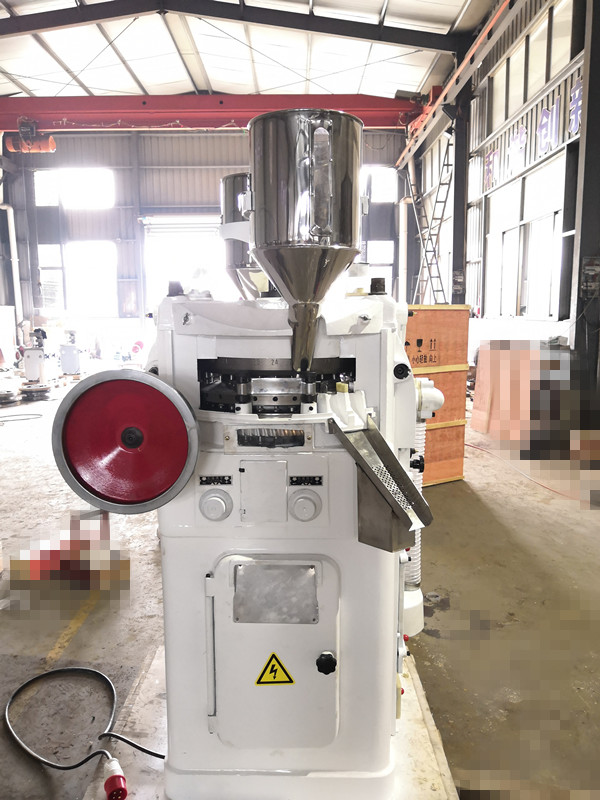

【产品名称】：ZP31旋转式压片机

ZP33旋转式压片机





主要用途

本机用以将各种颗粒状原料压制成圆形片，是适合批量生产设备的基本设备。其结构为双压式，有两套加料器装置和两套压轮。转盘上可装33付冲模旋转一周即可压制66片。压片时转盘速度，物料的充填深度、压片厚度均可调节。机上的机械缓行装置可避免因过载而引起的机件损坏。机内配有吸粉装置，通过吸嘴可吸取机器运转时所产生的粉尘，避免粘结堵塞，并可回收原料重新使用。

MAIN PUROSE

The machine is used for pressing various raw materials into round pieces, which is a basic equipment suitable for mass production. The structure of the utility model is a double pressure type, and the utility model is provided with two sets of feeding devices and a set of pressing wheels of the two sets. Turntable can be equipped with 33 die, placed a week to suppress the 66. The speed of the rotary table, the filling depth of material and the thickness of the tablet can be adjusted. Mechanical slowing down device on the machine may avoid the mechanical damage caused by overload. The utility model is provided with a powder absorbing box in the machine, which can absorb the dust generated by the machine when the machine is running, so as to avoid sticking and blocking.

技术参数 TECHNICAL PARAMETERS

型号 Model	ZP-31
冲模数Punch quantity（Sets）	31付
ZUI大压片压力Max.tablet pressure(kn)	60
ZUI大压片直径Max.tablet diameter(mm)	21
ZUI大充填深度Max.filling depth(mm)	15
ZUI大片剂厚度Max.tablet thickness(mm)	8
转盘转速Turret rotary speed(r/min)	11-28
生产能力Production capacity(PC/h)	43000-110000
电机功率Motor power(kw)	2.2
外形尺寸Overall size(mm)	950×960×1600
主机重量Machine weight(kg)	850
