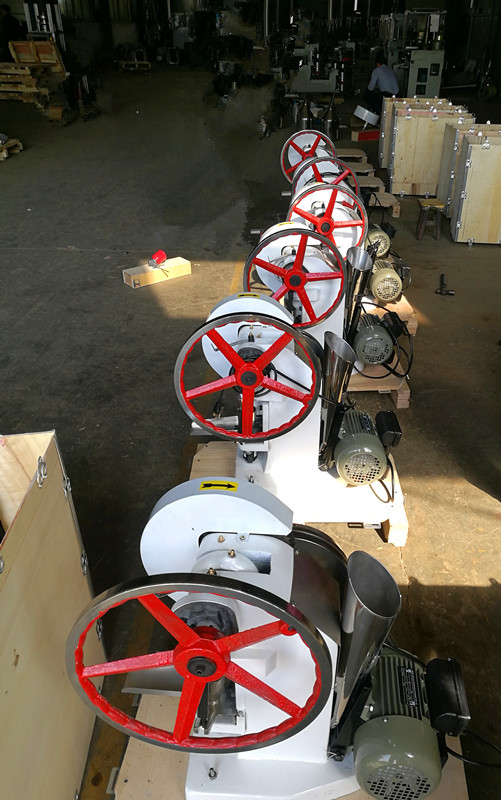

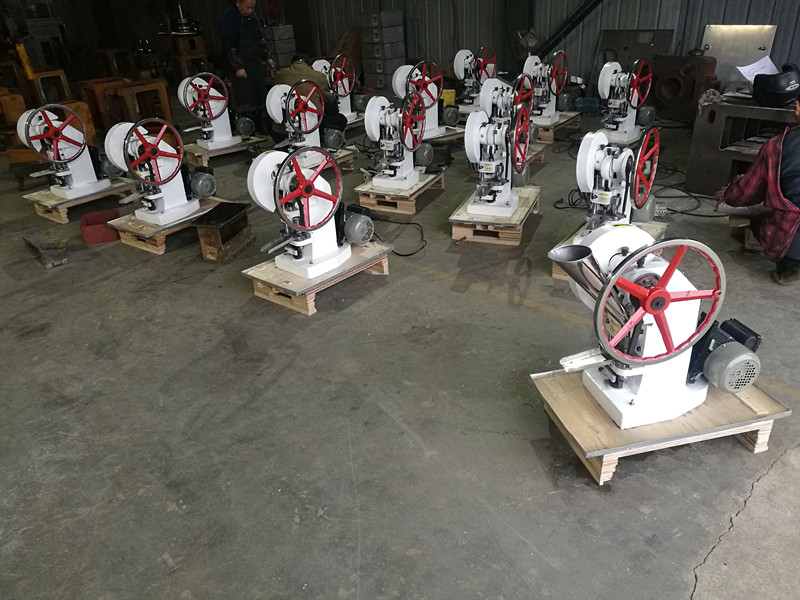

【产品名称】：TDP系列单冲压片机

TDP系列 单冲压片机



主要用途

本机用于将颗粒状原料压制成片剂，可广泛适用于制药、化工厂、食品厂、医院、科研单位、实验室式制和小批量生产。



MAIN FEATURE

The machine is used to press granular raw materials into tablets,it is widely applied for trial production and small batch production in pharmaceutical plants, chemical plants, food plants, hospitals, scientific research institutes and laboratories.





主要特点

本机型性能优良，适应性强，使用方便，易于维修，体积小，重量轻，无电时也可手摇压片。本机只装一付冲模，物料的充填深度、压片厚度均可调节，通过更换冲模可以压制不同形状大小的片剂，能适应制药行业压制各种中、西药片剂的要求和其它行业压制各种类似产品要求

MAIN FEATURE

With excellent performance, good adaptability, convenient use, easy maintenance, small volume and light weight, the machine can also realize

Tablet pressing by manual rocking in case of power failure. The machine is installed with only one set of punches,and the material filling depth and the tablet thickness can be adjusted.Through the replacement of punches,tablets of different and sizes can be made,so to meet the needs for making various kinds of TCM and western medicine tablets in the pharmaceutical industry and making various kinds of similar products in other industries. The machine has been deeply favored by users in various industries.



  技术参数 TECHNICAL PARAMETERS

型号 Model	TDP-1.5	TDP-5	TDP-6
ZUI大压片压力Max.tablet pressure(kn)	15	50	60
ZUI大压片直径Max.tablet diameter(mm)	15	20	25
ZUI大填充深度Max.filling depth(mm)	12	16	16
ZUI大片剂厚度Max.tablet thickness(mm)	6	6	6
生产能力Production capacity(PC/h)	3600	3600	3600
电动机功率Motor power(kw)	0.55	0.75	1.1
外形尺寸Overall size(mm)	700×370×800	700×400×800	700×500×900
重量Weight(kg)	65	125	140
