【产品名称】：THP花蓝式压片机
THP系列花篮式压片机

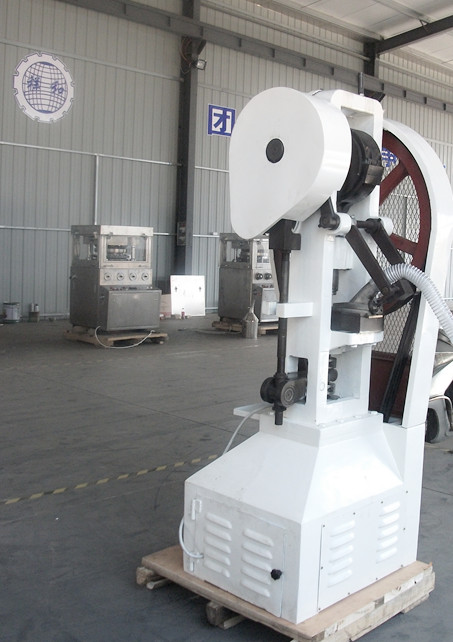

主要用途 本机是一种花篮式连续自动压片机，它是制药化工、食品、电子等工业部门处理颗粒原料压制成片或冲剂的必需设备之一，它适用于小批量生产、实验室、医院等部门压制药片、触媒、糖片、钙片、咖啡片、粉末治金、电子元件和各种农业化肥片剂等。它可压制各种异形、环形片剂，并可压制双面刻有商标、文字及简单图形的片剂。
MAIN PUROSE
This machine is a continuous automatic tablet press, it is the pharmaceutical chemical, food, electronics industries press the granular materials is one of the essential equipment in flakes or granules, which is suitable for departments in small batch production, laboratory and hospital pressing tablets, catalyst, calcium tablets, sugar tablets, tablets, powder metallurgy, coffee electronic components and various agricultural fertilizer tablets etc.. The utility model can be used for pressing various special-shaped and annular tablets, and can also be used for pressing a tablet with a double face engraved with trademarks, characters and simple figures.
技术参数 TECHNICAL PARAMETERS
|
型号 Model |
THP4 |
THP10 |
THP15 |
|
ZUI大压片压力Max.tablet pressure(kn) |
40 |
100 |
150 |
|
ZUI大压片直径Max.tablet diameter(mm) |
30 |
50 |
90 |
|
ZUI大冲填深度Max.filling depth(mm) |
25 |
45 |
45 |
|
ZUI大压片厚度Max.tablet thickness(mm) |
22 |
35 |
35 |
|
环形片孔径Ring-shaped tablet filling depth(mm) |
5-10 |
6-14 |
6-14 |
|
环形片填充深度Ring segment tablet filling depth(mm) |
25 |
25 |
45 |
|
主机重量Machine weight(kg) |
520 |
750 |
770 |
|
生产能力Production capacity(PC/h) |
300 |
2760 |
2760 |
|
电动功率Motor power(kw) |
1.1 |
2.6 |
3.7 |
|
外形尺寸Overall size(mm) |
685×565×1610 |
666×860×1824 |
666×860×1824 |
