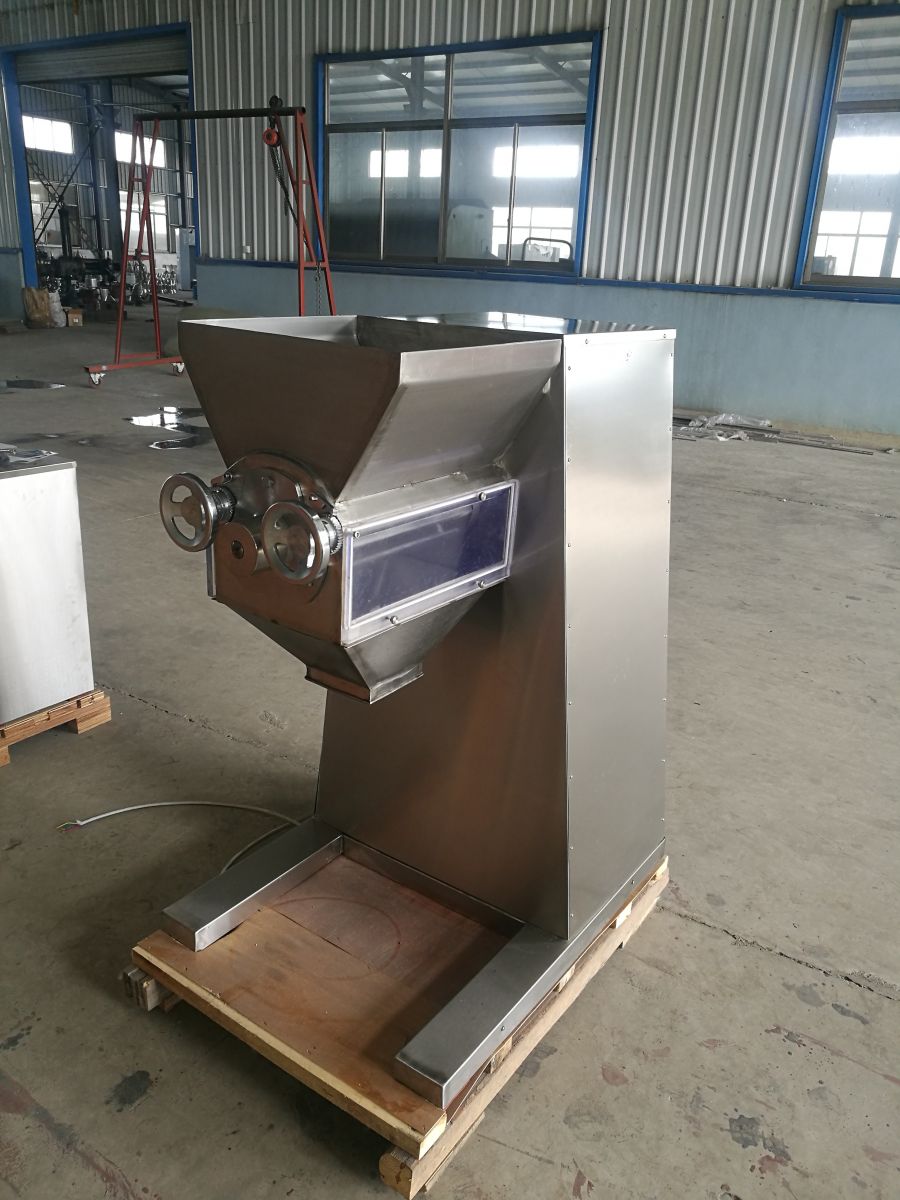

【产品名称】：YK160摇摆式颗粒机

YK摇摆式颗粒机

主要用途

本机用以将潮湿的粉料研制所需颗粒，也可将块状的干料粉碎到所需颗粒。主要特点是筛网装拆简易，还可适当调节松紧。七角滚筒拆卸方便、容易清洗。机械传动系统全部封闭在机体内，并附有润滑系统，整机运转平稳。旋转的七角滚筒的速度可以调节。是根据药品生产GMP的要求而设计制造的新机型，整机外形全用优质304不锈钢板封闭。使整机外形整洁美观，特别是筛网采用金属丝网或不锈钢板网。使颗粒的质量和经济效率有较大的提高。

MAIN PUROSE

This machine is used for the development of the wet powder,can also be dried block crushed to the desired particle. The main features of the screen is easy to install and disassemble, but also appropriate to adjust the tightness. Seven corner roller is convenient and easy to clean. The mechanical transmission system is enclosed in the machine body, and is equipped with lubrication system. The rotation of the seven angle drum speed can be adjusted. According to the requirements of the production of GMP and the design and manufacture of new models, the whole appearance of the machine with high quality 304 stainless steel plate closed. The whole machine is neat and beautiful, especially the screen is made of wire mesh or stainless steel mesh. It can improve the quality and economic efficiency of the particles.

技术参数 TECHNICAL PARAMETERS

型号Model	YK60	YK90	YK160
滚筒直径Roller diameter(mm)	60	90	160
生产能力Production capacity（kg/h）	20-30	50-100	200-300
摇滚幅度Oscillating amplitude(°)	＞360	＞360	＞360
滚动摇摆次数Oscillating times（次/分）	46	50	55
电机功率Motor power（kw）	0.25	0.55	2.2
重量Weight(kg)	55	150	330
外形尺寸Overall size(mm)	460×550×570	750×460×840	970×560×1240
