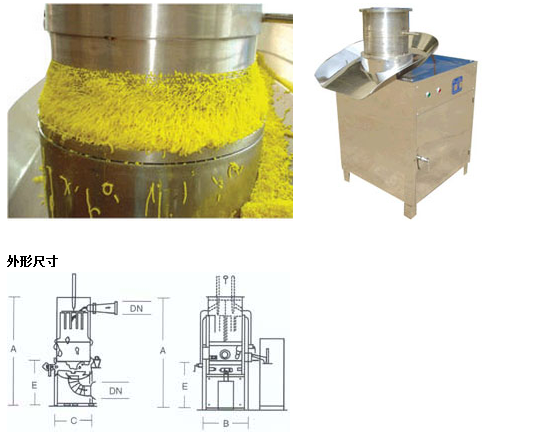

【产品名称】：旋转式颗粒机

旋转式颗粒机



主要用途

本机广泛用于制药、食品、冲剂、化工、固体饮料等行业，将搅拌好的物料制成所需颗粒，亦可粉碎废片和干快并碾挤成颗粒。特别适用对粘性较高的物料。本机凡与物料接触部分均采用不锈钢制作、外形美观、结构合理、制粒成型效率高，颗粒美观、自动出料，避免人工出粒造成颗粒破损，并适合流水工作。通过机械转动使碾刀和压料叶做相反旋转，压料叶成一定角度使物料向下压入碾刀，碾刀上的大角螺旋叶将物料推向筛子筒壁，再通过刀片将物料从筛选孔挤出而成颗粒。

MAIN PUROSE

The machine is widely used in pharmaceutical, food, granules, chemical, solid beverage and other industries, will be made of good mixing of the required particles, can also be used to smash the waste and dry fast and crushed into particles. The utility model is especially suitable for materials with high viscosity. The machine and material contact parts are made of stainless steel, beautiful appearance, reasonable structure, high efficiency of granulation, granule appearance, automatic discharge, avoid artificial particle breakage caused by particles, and is suitable for water work. Through the mechanical rotating grinding blade and pressing the leaf to do the opposite rotation, pressing Ye Cheng angle to make the material downward into the grinding blade grinding blade on the spiral leaf material to the Bighorn sieve tube wall, then the material from screening hole extruded particles by blade.

技术参数 TECHNICAL PARAMETERS

型号Model	ZL-250	ZL-300
碾刀尺寸Roller blade size(L)	250	300
制粒直径Granulating size(mm)	2-2.2（可根据客户需要）	1.8-2.5（可根据客户需要）
生产能力Production capacity（pc/h）	100-200	140-400
电机功率Motor power（kw）	3	4（kw）
外形尺寸Overall size(mm)	700*540*1300	880*640*1300（mm）
重量Weight(kg)	350	400（kg）
