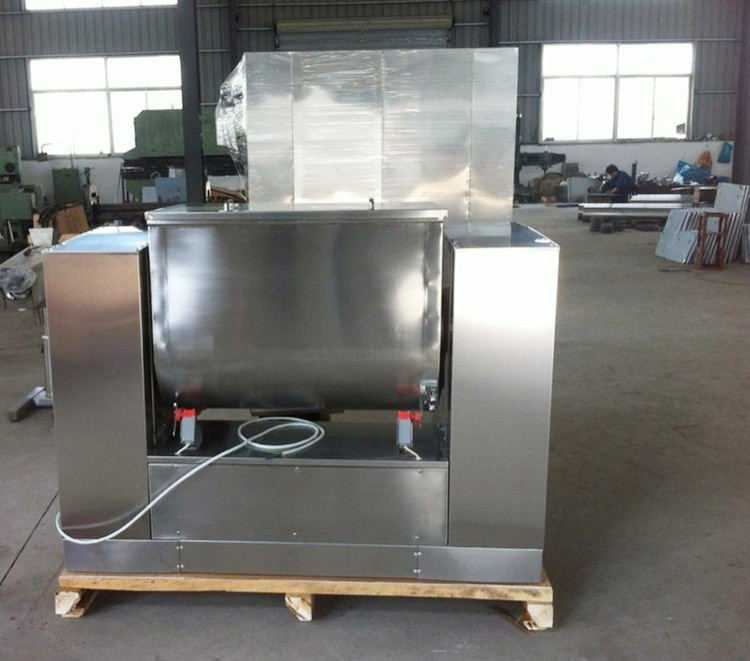

【产品名称】：CH 槽型混合机

CH系列槽型混合机



本机用于混合粉状或糊状的物料，使不同质物料混合均匀。其特点是卧式槽型单桨混合，搅抖桨为通轴式，便于清洗。与物体接触部分均为不锈钢制作。



MAIN PUROSE

This machine is used for mixing powder or paste material, so that heterogeneous materials mixed evenly. The utility model is characterized in that the horizontal groove type single paddle is mixed, and the stirring paddle is a through shaft type, which is convenient for cleaning. Contact parts are made of stainless steel.



工作原理

运用桨叶在料槽内的旋转将不同质物料均匀混合。圆槽混合机料槽与桨叶同时反向运转，较一般槽型混合机效率更高，混合更均匀。



WORKING PRINCIPLE

The uniform mixing of heterogeneous materials is carried out by the rotation of the blades in the feed trough. The groove and the blade of the round mixer can be operated reversely, and the efficiency is higher and the mixing is more uniform than that of the common trough mixer.



技术参数 TECHNICAL PARAMETERS

型号 Model	CH-10	CH-50	CH-100	CH-150	CH-200	CH-300	CH-400	CH-500	CH-600	CH-1000
工作容积 Working volume（L）	10	50	100	150	200	300	400	500	600	1000
主轴转速(r/min) Spindle rotation speed	24	24	24	24	24	24	24	24	24	24
混合周期 Mixing cycle(min)	5-20	5-20	5-20	5-20	5-20	5-20	5-20	5-20	5-20	5-20
主电机功率 Main motor power(kw)	0.25	1.1	2.2	3	4	5.5	5.5	7.5	2.2	2.2
倒料电机功率 Pouring motor power(kw)	By hand	0.75	0.75	0.75	0.75	1.1	1.1	1.5	2.2	2.2
机械重量 Machine weight(kg)	40	280	350	410	450	520	580	680	750	1200
外形尺寸 Overall size(mm)	600×280×450	980×420×800	1100×440×900	1280×600×1100	1400×600×1200	1850×700×1200	2100×750×1250	110×440×900	1280×600×1100	2280×1100×1500
