【产品名称】：SZ300筛片机

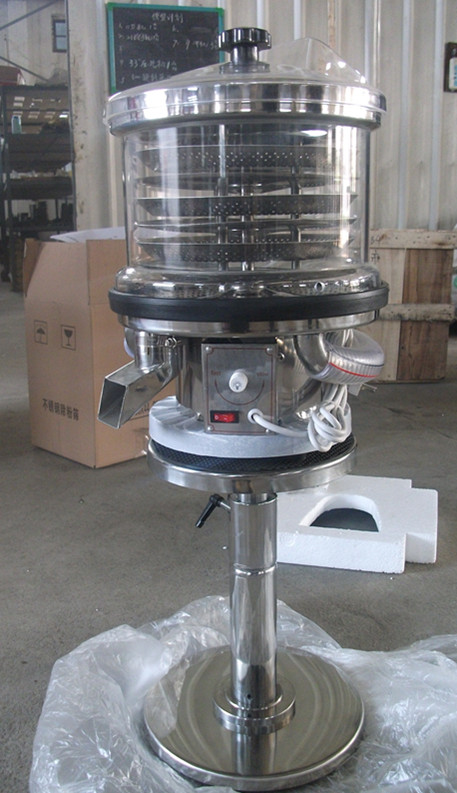

SZ300筛片机



主要用途

SZ300适用于对各种形状剂的除尘工作。全部生产过程直观、可视。在各层筛盘之间曾设了药粉隔离装置，实现药片与粉尘的有效分离。设备与药片接触部分均采用SUS316L/SUS304不锈钢材质，可与任何型号的压片机配套使用。



MAIN PUROSE

SZ300 is suitable for dust removal of various shapes. All production processes are visual and visual. A powder separation device is arranged between the layers of sieve plates to realize the effective separation of the pill and the dust. The contact part of the equipment and the tablet is made of SUS316L/SUS304 stainless steel, which can be used with any type of tablet press.



主要特点

♦符合GMP设计；

♦多层筛结构。使药片与粉尘有效分离；

♦全部生产过程直观、可视；

♦振幅及生产速度连续可调；

♦坼、装操作简单，使用、清洁方便；

♦性能可靠、效率高、噪音低。



MAIN FEATURE

♦Conform to GMP design;

♦The multi screen structure Effective separation of tablets and dust;

♦All production processes are visual and visual;

♦Continuous adjustable amplitude and production speed;

♦Crack, simple operation, convenient use, clean;

♦Reliable performance, high efficiency, low noise.



技术参数 TECHNICAL PARAMETERS

型号 Model	SZ300
ZUI大生产效率Max. production efficiency（t/h）	55000(Φ6mm Tablet)
ZUI大药片直径Max tablet diameter（mm）	Φ25
电源指标Power supply	1P 220/110V 50-60Hz
外形尺寸Overall size(mm)	Φ350×(H:770-950)
整机重量Machine weight(kg)	38
压缩空气compressed air	0.1m³/min0.05MPa
真空吸尘Vacuum cleaning	2.7m³/min 0.01MPa
