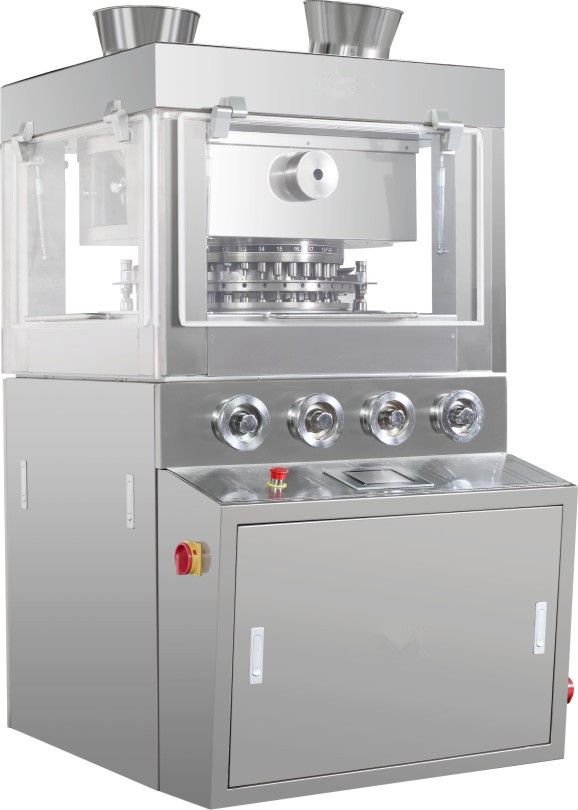

【产品名称】：ZP35A.35B系列 旋转式压片机
ZP35A.35B系列
旋转式压片机
主要特点
外围罩壳为全封闭，材料采用不锈钢，内部台面用不锈钢材料，能保持表面光泽及防止交叉污染，符合MGP要求。装有透明玻璃的门窗，能清楚的观察压片的状态，并且能全部打开，易于内部清洗和保养。采用变频调速装置进行电气调速，操作方便，移动平稳，安全准确。所有的转动装置均布置在机器内部，保持机件清洁。液压系统设计合理，能保证液压系统的稳定。配有过载保护装置，当压力过载时，能自动停机。本机配有电磁制动电动机和其它安全保护装置，运行时也能调整与操作。冲模可与ZP19.ZP33.ZP35B压片机通用。
MAIN FEATURE
The outer cover is fully enclosed, the material is made of stainless steel, the stainless steel material is used in the inner surface, which can keep the surface gloss and prevent cross contamination, which is in accordance with the requirements of MGP. With transparent glass doors and windows, can clearly observe the state of the tablet, and can all open, easy to clean and maintain internal. The frequency conversion speed regulating device is adopted for the electric speed regulation, the operation is convenient, the movement is stable, and the safety is accurate. All rotating devices are arranged inside the machine to keep the machine clean. Hydraulic system design is reasonable, can guarantee the stability of the hydraulic system. Equipped with overload protection device, when the pressure overload, can automatically stop. This machine is equipped with electromagnetic brake motor and other safety protection devices. Die can be used with ZP19.ZP33.ZP35B tablet press.
技术参数 TECHNICAL PARAMETERS
|
型号 Model |
ZP-35A |
ZP-35B |
|
冲模数Punch quantity（Sets） |
35 |
35 |
|
ZUI大压片压力Max.tablet pressure(kn)Prepressure |
80 |
100 （预压力20） |
|
ZUI大压片直径Max.tablet diameter(mm) |
13 |
13 |
|
ZUI大充填深度Max.filling depth(mm) |
15 |
15 |
|
ZUI大片剂厚度Max.tablet thickness(mm) |
6 |
6 |
|
转盘转速Turret rotary speed(r/min) |
5-36 |
5-36 |
|
生产能力Production capacity(PC/h) |
150000 |
150000 |
|
电机功率Motor power(kw) |
3 |
3 |
|
外形尺寸Overall size(mm) |
910×1120×1650 |
1180×1050×1700 |
|
主机重量Machine weight(kg) |
2300 |
2300 |
