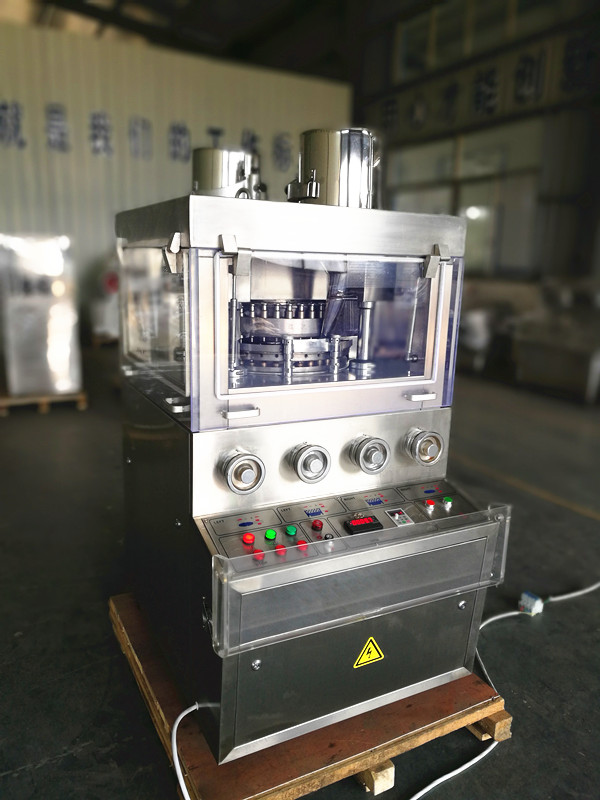

【产品名称】：ZPW29.31系列旋转式压片机

ZPW29.31系列

旋转式压片机



主要特点

♦外围罩壳为全封闭，材料采用不锈钢，内部台面用不锈钢材料，能保持表面光泽及防止交叉污染，符合MGP。

♦用透明防护罩可以清楚地看到机械操作情况。且能全部打开易于清洗和保养。

♦转速为无极调速，可以任意调节。

♦实现机电一体化，采用触摸键及显示屏（转速、产量、故障）等显示。

♦传动系统密闭在机器主体下方油箱中，是安全分隔的独立部件，不会互相污染，又使传动轴浸润油池中，得到充分的润滑，噪音和磨损减少。

♦机械装有吸尘装置，能将压制室内飞扬的粉尘吸收干净。

♦压制双层片时，产量减半。



MAIN FEATURE

♦The outer cover is fully enclosed, the material is made of stainless steel, the stainless steel material is used in the inner surface, which can keep the surface gloss and prevent cross contamination, which is in line with MGP.

♦The transparent protective cover can see clearly the operation of machinery. And can open all easy to clean and maintain.

♦The speed is stepless speed can be adjusted.

♦The mechanical and electrical integration, the use of touch keys and a display screen (speed, output, fault display).

♦The transmission system is sealed in the machine body below the tank, is a fully independent part, not pollution, but also to drive shaft infiltration of oil tank, adequate lubrication, reduce noise and abrasion.

♦The machine is equipped with dust collection device can suppress the absorption of a clean indoor flying dust.

♦The double pressing for halving production.





技术参数 TECHNICAL PARAMETERS

型号 Model	ZPW-29	ZPW-31
冲模数Punch quantity（Sets）	29	31
ZUI大压片压力Max.tablet pressure(kn)	80	80
ZUI大压片直径Max.tablet diameter(mm)	24	22
ZUI大充填深度Max.filling depth(mm)	15	15
ZUI大片剂厚度Max.tablet thickness(mm)	6	6
转盘转速Turret rotary speed(r/min)	14-36	14-36
生产能力Production capacity(PC/h)	125000	135000
电机功率Motor power(kw)	3-5.5	3-5.5
外形尺寸Overall size(mm)	1230×950×1670	1230×950×1670
主机重量Machine weight(kg)	1700	1700
