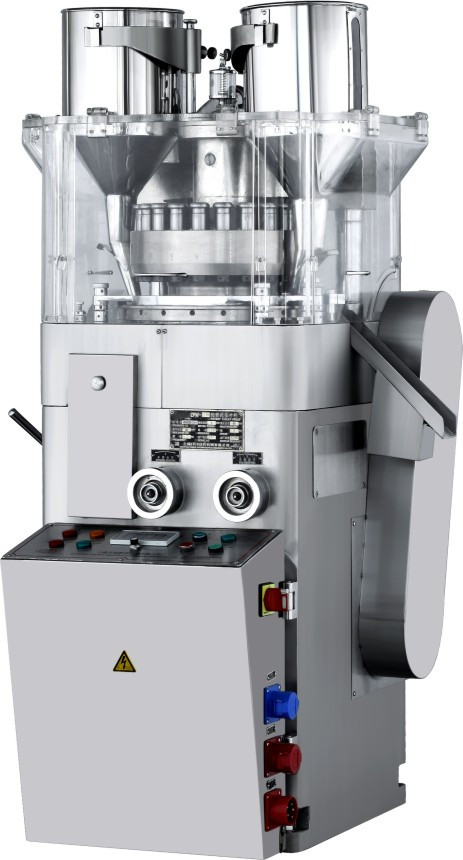

【产品名称】：ZPW21A(B)系列 旋转式压片机
ZPW21A(B)系列
旋转式压片机
主要用途
本机是按照GMP设计制造的，用于颗粒状原料制成粉状。此压片机的ZUI大优点是全封闭防尘，可以全隔绝污染。本机除压制圆形片以为，还能压制异形片，双层片、环形片等。同时运转、噪音小、压力大、过压停机、避免机件损坏。
MAIN PUROSE
The machine is designed and manufactured in accordance with GMP, used for making granular materials. The biggest advantage of this tablet machine is that it can be completely sealed off and can be completely isolated. The machine in addition to suppress the circular piece that can also suppress the special-shaped tablets, double film, such as circular film. At the same time operation, the noise is small, the pressure is large, overvoltage shutdown, avoid mechanical damage.
工作原理
♦用透明防护罩可以清楚的看到机械操作的情况，且能全部打开易于清洗和保养。
♦转速为无极调速，可任意调节。
♦根据需要选择制片压力，并能在压力表上显示出来。
♦安装带键衡杆就能压制异形片剂。
♦配有压制双层片，环形片的轨道，压轮等装置就能压双层片和环形片。
♦可不停机完成试车，调整工作。
♦室内与物料接触部分采用不锈钢材料或表面经过特殊防腐处理。
WORKING PRINCIPLE
♦The transparent protective cover can be seen clearly by the mechanical operation, and can open all the easy cleaning and maintenance.
♦The speed is stepless speed adjustable.
♦According to the pressure can be chosen, and shown on the pressure gauge.
♦The Install button bar can press special-shaped tablets.
♦The press is equipped with double layer tablets, ring track roller device can press double layer tablets and annular tablets.
♦Don't stop the completion of commissioning, adjustment.
♦The contact part adopts stainless steel material and indoor material or surface after special anti-corrosion treatment.
技术参数 TECHNICAL PARAMETERS
|
型号 Model |
ZPW-21A/21B |
|
冲模数Punch quantity（Sets） |
21 |
|
ZUI大压片压力Max.tablet pressure(kn) |
100 |
|
ZUI大压片直径Max.tablet diameter(mm) |
20 |
|
ZUI大充填深度Max.filling depth(mm) |
18 |
|
ZUI大片剂厚度Max.tablet thickness(mm) |
9 |
|
生产能力Production capacity(PC/h) |
15000-45000 |
|
电机功率Motor power(kw) |
3 |
|
外形尺寸Overall size(mm) |
900×800×1640 |
|
主机重量Machine weight(kg) |
1200 |
