【产品名称】：ZP19D旋转式压片机

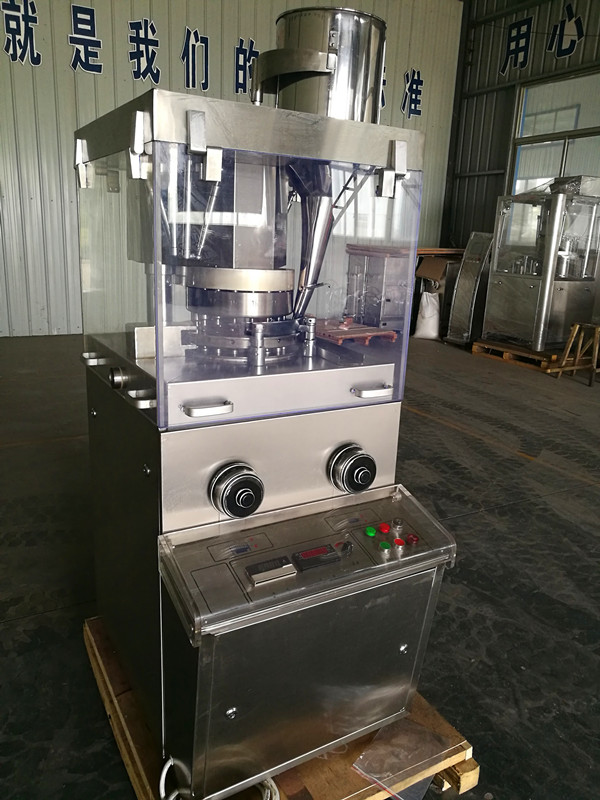

ZP19D旋转式压片机

主要用途

本机是我厂开发研制而成的单压式自动旋转连续压片机，它将颗粒状的原料压制成各种普通型及异形片。主要适用于电子、食品、日用品，制药等工业部门外围罩壳为全封闭形式，材料采用不锈钢，符合MGP标准。装有透明玻璃的门窗，能清楚地看到机器的工作情况且能全部打开，易于内部清洗和保养。本机具有压力大，压力范围大，能压普通和异形，环形等多种形状片剂的特点，特别适合多品种、小批量生产。机电一体，所有控制器及调节装置集中集体一侧，易于操作。配有压力过载保护装置，避免机器损坏。采用油浸式润滑的传动机构密闭在机体下方，延长了使用寿命避免了交叉污染。冲模可与ZP17压片机通用。



MAIN PUROSE

This machine is developed by our factory, and it is a single - pressure automatic rotation continuous tablet press, it will be granular material into a variety of ordinary and special-shaped. Mainly used in electronics, food, daily necessities, pharmaceutical and other industries outside the enclosure for the full closure of the form, the use of stainless steel materials, in line with MGP standards. Transparent glass doors and windows, can clearly see the work of the machine and can be fully open, easy internal cleaning and maintenance. The utility model is characterized in that the utility model has the advantages of high pressure, large pressure range, high pressure, etc. the utility model can be used for the production of various types of small and large quantities. Electrical and mechanical integration, all controllers and control devices focus on one side, easy to operate. Equipped with overload protection device to avoid damage to the machine. The transmission mechanism of oil immersed lubrication is sealed under the machine body, and the service life is prolonged. Die can be used with ZP17 tablet press.



型号 Model	ZPW-15D	ZPW-17D	ZPW-19D
冲模数Punch quantity（Sets）	15	17	19
ZUI大压片压力Max.tablet pressure(kn)	80	80	80
ZUI大压片直径Max.tablet diameter(mm)	22	20	13
ZUI大充填深度Max.filling depth(mm)	15	15	15
ZUI大片剂厚度Max.tablet thickness(mm)	6	6	6
转盘转速Turret rotary speed(r/min)	37	37	37
生产能力Production capacity(PC/h)	35，000	40，000	42，000
电机功率Motor power(kw)	2.2/960，380V/50	2.2/960，380V/50	2.2/960，380V/50
外形尺寸Overall size(mm)	615×890×1415	615×890×1415	615×890×1415
主机重量Machine weight(kg)	700	700	700

技术参数 TECHNICAL PARAMETERS
