产品展示

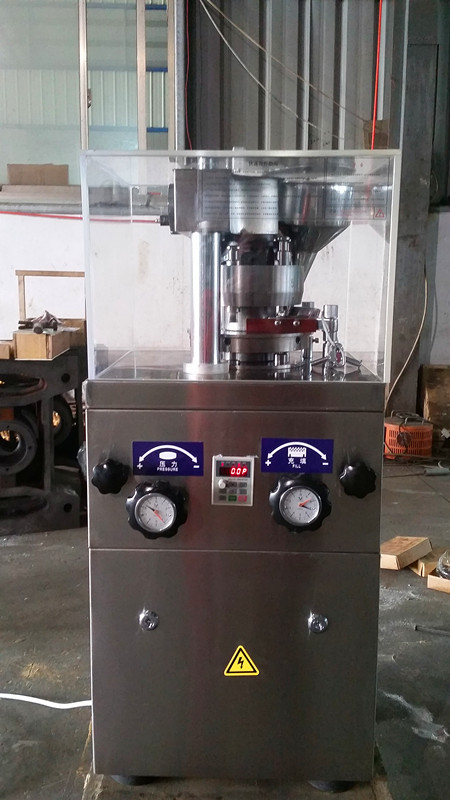

【产品名称】:ZP5A分体式旋转式压片机

ZP5A.7A.9A系列

旋转式压片机(普通型)

主要用途

本机是一种单压式自动旋转,连续压片的机器,将颗料状原料压制成各种片剂。它主要用于制药片剂生产,同时适用于化工、食品、电子等工业部门。外围罩壳为全封闭形式,材料采用不锈钢,内部台面用不锈钢材料,转台表面经特殊处理,能保持表面光泽与防止交叉污染,符合MGP要求。装有透明玻璃的门窗,能清楚观察压片的状态,并且能全部打开,易于内部清洗和保养。所有控制器和操作件均布局合理。采用变频调速装置进行电气调速,操作方便,转动平稳,安全准确。所有的传动装置均布置在机器内部,保持机件清洁。配有过载保护装置,当压力过载时,能自动停机。本机所有电磁制动电动机和其它安全保护装置,运行时也能调整与操作。





MAIN PUROSE

The machine is a single-pressure automatic rotating, continuous pressure film machine, which presses the raw material into various tablets. It is mainly used in the production of pharmaceutical tablets, and it applies to industrial sectors such as chemical, food and electronics. Outer cover is fully enclosed form, the material of stainless steel, stainless steel internal mesa material, the surface of the rotary table through special processing, can maintain the surface gloss and prevent cross contamination, comply with the requirement of MGP. The doors and Windows of transparent glass can clearly observe the state of the press, and it can be fully opened and easily cleaned and maintained. All controllers and operating units are well laid out. The speed regulating device is adopted to adjust the speed of electric speed, the operation is convenient, the rotation is smooth, the safety is accurate. All transmission units are arranged inside the machine, keeping the machine clean. Equipped with overload protection, automatic stop when the pressure is overloaded. All electromagnetic brake motors and other safety protection devices can be adjusted and operated.



技术参数 TECHNICAL PARAMETERS

型号 Model

ZP-5A

ZP-7A

ZP-9A

冲模数Punch quantity(Sets)

5

7

9

ZUI大压片压力Max.tablet pressure(kn)

40

60

60

ZUI大压片直径Max.tablet diameter(mm)

12(异14)

12(异14)

12(异14)

ZUI大充填深度Max.filling depth(mm)

15

15

15

ZUI大片剂厚度Max.tablet thickness(mm)

6

6

6

转盘转速Turret rotary speed(r/min)

30

30

30

生产能力Production capacity(PC/h)

9000

12600

16200

电机功率Motor power(kw)

1.5

1.5

1.5

外形尺寸Overall size(mm)

400×580×1000

400×580×1000

400×580×1000

主机重量Machine weight(kg)

310

310

310
